“Our Technology Works Where Others Fail”

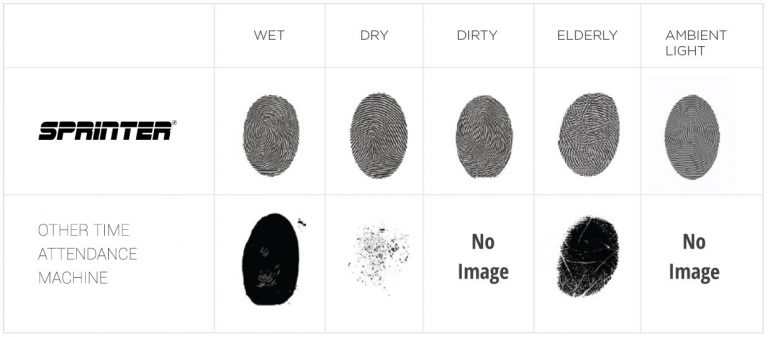

For conventional fingerprint technologies to function, users with clean fingerprints are needed. Herein lie the challenges to conventional readers, which don’t take into account the real world wear and tear of the fingerprints, resulting in high failure verification rates. With it’s patented fingerprint technology and coupled with the world’s most advance algorithm, the Sprinter A700 was designed to perform in today’s real world environments functioning even when users have wet, dry, aged,cut or damaged fingerprints. Using the industry’s best liveness detection technology, we provide the most secure and accurate fingerprint terminal available.
Fast fingerprint algorithm
LF(125kHz), HF(13.56MHz) dual band Reads all card types
High-precision OP6 optical sensor
Records a snapshot of the user at the time of verification
Color LCD with Keypad for time attendance functionality
Standalone or network environment
Our communication technology leverages seamless real time data transfer from our devices to third party systems and vice versa.
Using the existing Local Area Network (LAN) for both power and data eliminates the need for any additional power supply or electrical wiring
The color displays crisp, high resolution user notification screens. Versatile Communication Interface Flexible API’s
Built-in relay- Alarm; Work code; Anti-pass back; Professional access control system support real-time entrance logs transferring
Provide extra security with 50 time zone; user grouping; professional unlocking combination function; easy integration with door lock system
Height: 45 mm
Width: 165 mm
Length: 225 mm
LCD Display: 3.5″ TFT high-definition
graphical interface, 65.000 real color
110/220VAC ~ 12VDC 3A
Fingerprint Technology: Patented Multi spectral imaging
Image resolution: 500DPI
Large Scanning area: 18mm x 28mm
Identification Methods: 1:1 or 1:N
Fingerprint capacity: 8,000~10,000
Optional: 50,000 Finger capacity
200,000 In/Out Logs
Verification speed: (1:1): ≤0.5s
Identification speed: (1: N): ≤1s
TCP/IP
RS232/485
USB Host/Client
Wiegand In/out
Network Equipment Stand Alone Equipment
Check in, Check out
Break in, Break out
OT in, OT out
CPU: 1.2 GHz
Memory: 256 MB RAM
Voice Prompt (English)
Temperature: 0 °C ~ 45 °C
Humidity: 20% ~ 80%
3G Wifi
Screen Saver
Builtin Battery
