Visible Light Dynamic Face & Palm Recognition with Mask & Temperature Detector
Features
Speedy Recognition
Fast face recognition algorithm
Face Recognition
A single unit of FR10-TD can accommodate 6,000 users
Masks Detection
Better hygiene with touch-less biometric authentication, masked individual identification increase FAR
HD Camera
Records a snapshot of the user at the time of verification.
Palm Recognition
Palm Vein Time Attendance with advanced Touchscreen & Multimedia interface. 3000 palm templates
Network Environment
Standalone or network environment
Real Time Communication
Our communication technology leverages seamless real time data transfer from our devices to third party systems and vice versa.
Big Screen
5” Inch Display touch screen, elegant design & interface
Intuitive User Interface
The color displays crisp, high resolution user notification screens. Versatile Communication Interface Flexible API’s

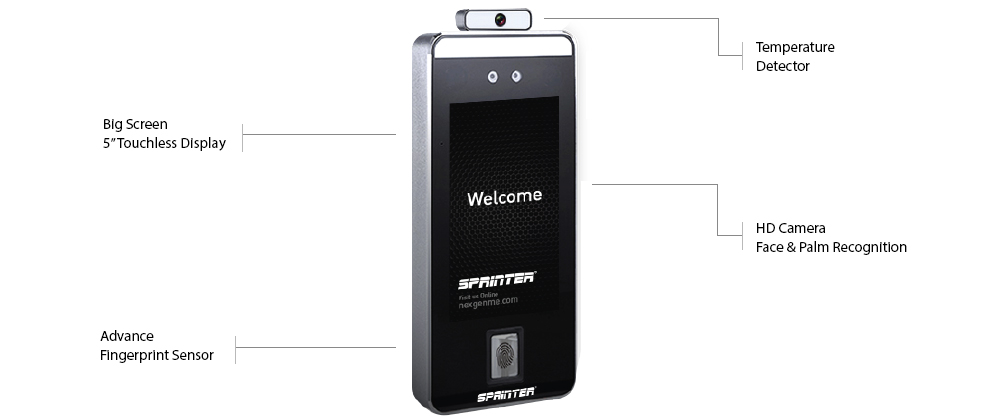

Specifications
DIMENSIONS
Height: 220 mm
Width: 91.93 mm
Length: 22.5 mm
DISPLAY
Touch Screen: 5″ Display high-definition graphical interface,
POWER
110/220VAC ~ 12VDC 3A
IN / OUT LOG
200,000 log
BIOMETRICS
Fingerprint Technology: Patented Multi spectral imaging Image resolution: 500DPI Fingerprint capacity: 6,000 (Standard) ~10,000 (Optional)
FACE
Face capacity: 10,000
Facial Recognition Speed: <1s
PALM
Palm Capacity: 3,000
NETWORK
Network Equipment
Stand Alone Equipment
COMMUNICATION INTERFACE
TCP/IP
RS232/485
USB Host/Client
Wiegand In/out
ATTENDANCE STATUS
Check in, Check out
Break in, Break out
OT in, OT out
OPERATING
Temperature: 0 °C ~ 45 °C
Humidity: 10% ~ 90%
LANGUAGE SPEAKER
Voice Prompt
MEMORY
900MHz Dual Core CPU
Memory 512 MB Ram / 8G Flash
2MP WDR Low Light Camera
Adjustable Light Brightness LED
OPERATING SYSTEM
Linux
ACCESS CONTROL INTERFACE
3rd Party Electric Lock
Door Sensor
Exit Button
Alam Output
Auxiliary Input
