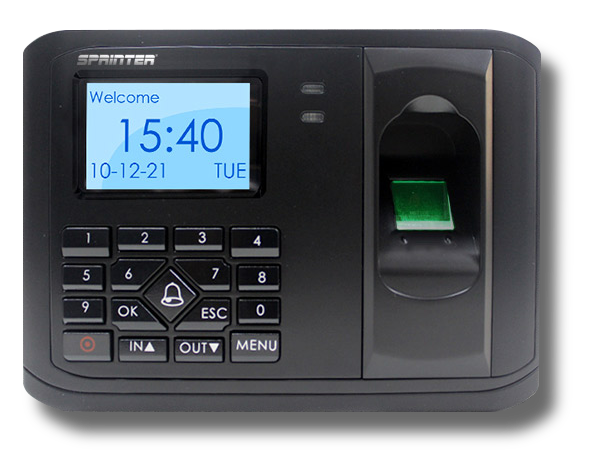

Small & Slim Attendance Terminal
World’s #1 Fingerprint Technology
With it’s patented fingerprint technology, and coupled with the world’s most advance algorithm the Sprinter SP04 is able to verify anyone, in any condition.
Features
Best-in-class Performance
Fast fingerprint algorithm
World # 1 Fingerprint Technologies
Extra large finger capture area #1 fingerprint algorithm.
Real Time Communication
TCP/IP, RS232/485, USB Host/Client, Wiegand in/out
Access Control
Professional access control, built-in relay, 50 time zones, 5 groups and 10 combinations; Dismantlement alarm, break-in alarm, duress alarm; Wired door bell connection; anti-passback
Full Time Attendance Features
Color LCD with Keypad for time attendance functionality
Network Environment
Standalone or network environment

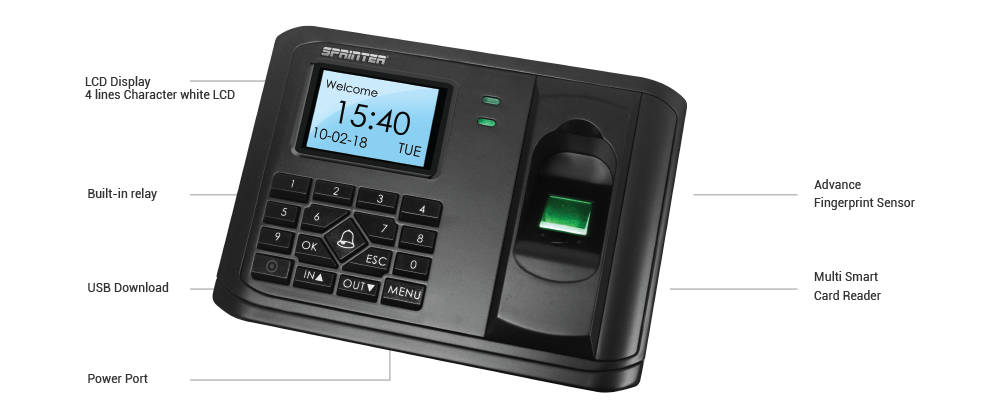

Specifications
DIMENSIONS
Height: 38 mm
Width: 110 mm
Length: 155 mm
DISPLAY
LCD Display: 4 lines Character white LCD 128*64
POWER
110/220VAC ~ 12VDC
(PS-3A is optional item)
STANDARD FUNCTION
Professional access control, built-in relay, 50 time zones, 5 groups and 10 combinations; Dismantlement alarm, break-in alarm, duress alarm; Wired door bell connection; DST; Scheduled bell, SMS, anti-passback , webserver
BIOMETRICS
Fingerprint capacity: 4,000 standard Optical Sensor (OP6)
LOG. MAX
100,000 In/Out Logs
RFID CARD
27,400 Users
SPEED
Verification speed: (1:1): ≤0.5s
Identification speed: (1: N): ≤1s
CUSTOMIZE FUNCTION
9-PIN ID, Multi-verify, Auto status, ID reader, MIFARE reader, Slave reader
COMMUNICATION INTERFACE
TCP/IP
RS232/485
USB Host/Client
Wiegand In/out
NETWORK
Network Equipment Stand Alone Equipment
VERIFICATION / IDENTIFICATION
FRR: ≤0.01%
FAR: ≤0.0001%
ATTENDANCE STATUS
Check in, Check out
Break in, Break out
OT in, OT out
MEMORY
CPU: 1.2 GHz
Memory: 256 MB RAM
LANGUAGE
Voice Prompt (English)
OPERATING
Temperature: 0 °C ~ 45 °C
Humidity: 20% ~ 80%
OPTIONAL
Builtin Battery (not supported)
Mini UPS 12volt support
HID, Mifare Cards
