Features
Speedy Recognition
Fast face recognition algorithm
Face Recognition
A single unit of FR20 can accommodate 3,000 users
Masks Detection
Better hygienne with touchless biometric authentication, masked individual identification increase FAR

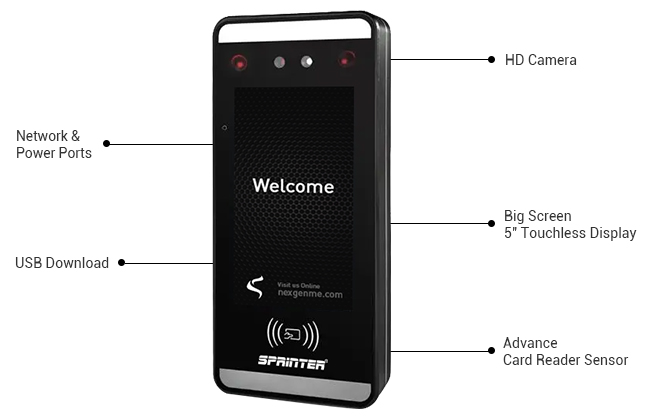

HD Camera
Records a snapshot of the user at the time of verification.
Multiple Verification
Face / Card / Password
Network Environment
Standalone or network environment
Real Time Communication
Our communication technology leverages seamless real time data transfer from our devices to third party systems and vice versa.
Big Screen
5” Inch Display touch screen, elegant design & interface
Intuitive User Interface
The color displays crisp, high resolution user notification screens. Versatile Communication Interface Flexible API’s
Specifications
DIMENSIONS
Height: 220.93 mm
Width: 91.93 mm
Length: 2.5 mm
DISPLAY
Touch Screen: 5" Display high-definition graphical interface
POWER
12VDC 3A
IN / OUT LOG
150,000 log
FACE
Face capacity: 3,000
Facial Recognition Speed: <1s
CARD CAPTACITY
Card capacity: 3,000
NETWORK
Network Equipment
Stand Alone Equipment
LANGUAGE SPEAKER
English
OPERATING SYSTEM
Linux
COMMUNICATION INTERFACE
TCP/IP
WIFI (Optional)
RS485
Wiegand In/out
ATTENDANCE STATUS
Check in, Check out
Break in, Break out
OT in, OT out
OPERATING
Temperature: 0 °C ~ 45 °C
Humidity: 10% ~ 90%
MEMORY
900MHz Dual Core CPU
Memory 512 MB Ram / 8G ROM
2MP WDR Low Light Camera
Adjustable Light Brightness LED
ACCESS CONTROL INTERFACE
3rd Party Electric Lock
Door Sensor
Exit Button
Alam Output
Auxiliary Input
OPTIONAL FUNCTIONS
13.56MHz IC Card / WiFi
